Forged Weld-On D Lashing Ring
Lashing Ring Weld On 1/2" x 12,000 Lbs Forged Mounting Ring This is a heavy duty 1/2" weld on lashing ring. Lashing Ring Weld On 3/4'' x 26,500 Lbs Forged Mounting Ring. This is a heavy duty 3/4'' weld on lashing ring. Lashing Ring Weld On 1'' x 47,600 Lbs Forged Mounting Ring.This is a heavy duty 1'' weld on lashing ring. Long Lashing Ring Weld On 1'' x 47,000 Lbs Forged Mounting Ring. This "Long" Heavy Duty 1'' weld on lashing ring is 1'' longer than our standard 1'' Lashing Ring. 45° Bent Lashing Ring Weld On 1'' x 47,600 Lbs Forged Mounting Ring. This is a heavy duty 1'' x 5" x 5.6" weld on lashing ring bent to 45 degree angle.
1/2" Forged Weld-On D Lashing Ring
Artical No.: CS-LR00212
Material: Carbon Steel
Surface Treatment: Zinc Plated Gold Passivated
Diameter: 1/2"
Product Weight: 0.93 pounds
Maximum Load (Break Strength): 12,000 lbs
Safe Working Load Limit (WLL): 4,000 lbs
D Ring Type: Weld On
3/4" Forged Weld-On D Lashing Ring
Artical No.: CS-LR00212
Material: Carbon Steel
Surface Treatment: Zinc Plated Gold Passivated
Diameter: 1/2"
Product Weight: 0.93 pounds
Maximum Load (Break Strength): 12,000 lbs
Safe Working Load Limit (WLL): 4,000 lbs
D Ring Type: Weld On
1" Forged Weld-On D Lashing Ring
Artical No.: CS-LR00210
Material: Carbon Steel
Surface Treatment: Zinc Plated Gold Passivated
Diameter: 1"
Product Weight: 4.2 pounds
Maximum Load (Break Strength): 47,000 lbs
Safe Working Load Limit (WLL): 15,666 lbs
D Ring Type: Weld On
1" Bent D Shaped Lashing Ring | Angled D-Ring
Artical No.: CS-LR0021B
Material: Carbon Steel
Surface Treatment: Zinc Plated Gold Passivated
Diameter: 1"
Product Weight: 2.6 pounds
Maximum Load (Break Strength): 47,000 lbs
Safe Working Load Limit (WLL): 15,866 lbs
D Ring Type: Weld On
|

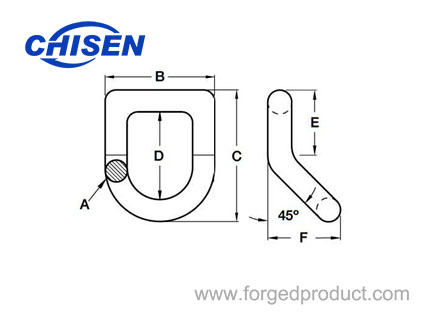

Part
Number |
Size (A)
|
Dimensions
|
Working Load Limit
(5:1 Design Factor) |
Breaking
Strength |
Weight
Each (lbs.) |
|||
|---|---|---|---|---|---|---|---|---|
|
B
|
C
|
D
|
E
Bend |
|||||
|
CS-LR0021B
|
1"
|
5.00
|
5.50
|
3.50
|
2.75
|
15,866 Lbs
|
47,000 Lbs
|
2.73
|
|
Rated Capacity & Breaking Strength are based on proper welding procedures.
|
||||||||
1" Heavy Duty Forged Weld-On D Lashing Ring
Artical No.: CS-LR0021H
Material: Carbon Steel
Surface Treatment: Zinc Plated Gold Passivated
Diameter: 1"
Product Weight: 4.5 pounds
Maximum Load (Break Strength): 47,000 lbs
Safe Working Load Limit (WLL): 15,666 lbs
D Ring Type: Weld On
This "Long" Heavy Duty 1'' weld on lashing ring is 1'' longer than our standard 1'' Lashing Ring.
Forged Weld-On D Lashing Ring
Lashing Ring Weld On 1/2" x 12,000 Lbs Forged Mounting Ring. This is a heavy duty 1/2" weld on lashing ring.
These D-Rings are suitable for lashing and tie down on truck and trailer decks, barges and ship decks. Shipped as complete D-Rings (forged ring plus welding strap).
Dee ring is forged and strap is of bent steel. Product is for load securement and tie down only, DO NOT use for overhead lifting.
Weldable Dee Rings
Artical No. |
Breaking Strength Pounds |
Working Load Limit Pounds |
A inch |
B inch |
C inch |
D inch |
E inch |
F inch |
Weight Per Piece Pounds |
|---|---|---|---|---|---|---|---|---|---|
CS-LR00212 |
12,000 |
4,000 |
2.25 |
0.50 |
2.50 |
1.75 |
0.88 |
1.28 |
0.93 |
CS-LR00258 |
18,000 |
6,000 |
3.00 |
0.62 |
3.00 |
2.50 |
1.18 |
1.75 |
2.00 |
CS-LR00234 |
26,500 |
8,833 |
3.00 |
0.75 |
3.00 |
2.52 |
1.34 |
1.85 |
2.60 |
CS-LR00210 |
47,000 |
15,866 |
3.00 |
1.00 |
4.00 |
2.44 |
1.50 |
2.14 |
4.50 |
These D-Rings are suitable for lashing and tie down on truck and trailer decks, barges and ship decks. Shipped as complete D-Rings (forged ring plus welding strap). Dee Ring is forged and strap is of bent steel. Product is for load securement and tie down only, DO NOT use for overhead lifting.
